1. Why Peptide Arrays matter today

Modern drug discovery and antibody research are navigating a "reproducibility crisis" and an escalating cost-per-molecule metric, largely due to the high failure rate of early-stage candidates with poor specificity or unforeseen off-target effects [1]. Traditional screening methodologies, such as Western blotting and standard enzyme-linked immunosorbent assays (ELISA), while accurate for single-analyte verification, are fundamentally ill-equipped to handle the data-rich requirements of proteome-wide screening or the characterization of complex immune responses [2, 3].

High-throughput peptide screening is no longer merely a luxury of large-scale pharmaceutical facilities: It is a prerequisite for contemporary immunology and oncology [3]. The emergence of neoantigen-based cancer vaccines and the ongoing surveillance of mutating viral pathogens like SARS-CoV-2 require a technology that can transition from sequence prediction to physical validation in weeks, rather than months [4]. Peptide arrays bridge this gap by providing a spatially addressable platform for empirically testing hypotheses generated by bioinformatic pipelines and artificial intelligence models.



2. How does Peptide Arrays work?

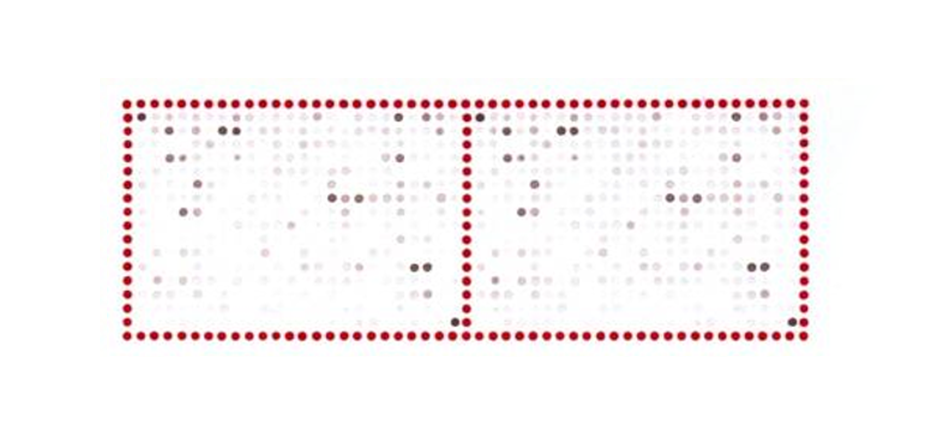

A peptide array is composed of a large number of synthetic peptides immobilized at specific, known coordinates on a solid support, such as a cellulose membrane or a glass slide [2]. This technology serves as a positionally addressable micro-scale laboratory where molecular recognition events can be monitored across thousands of unique sequences simultaneously [5].

At its core, peptide array technology utilizes the principles of solid-phase peptide synthesis (SPPS), originally pioneered by Bruce Merrifield, but adapts them for parallel, in situ construction. Unlike traditional peptide synthesis, which produces a single sequence in a large volume, peptide arrays synthesize a multitude of different sequences at discrete locations (spots) on a planar surface. Each spot contains a specific peptide sequence, typically ranging from 5 to 20 amino acids in length, although some advanced platforms can accommodate up to 40 or even 90 residues [2].





3. Types of Peptide Arrays

The evolution of peptide arrays has resulted in several distinct formats, each optimized for different research needs, ranging from low-density macroarrays used in individual labs to ultra-high-density microarrays used in industrial screening.

3.1 Microarray vs Macroarray

Peptide macroarrays are typically produced on large sheets of cellulose membrane, often 10 x 15 cm or 19 x 29 cm. These formats hold 16 peptides per cm2 and are robust and easy to handle manually, but they require relatively large sample volumes for incubation [6].
Peptide microarrays, conversely, are miniaturized versions often printed on standard microscope glass slides (25 x 75 mm). Microarrays offer high feature density, reaching up to 2000-4000 spots per cm2, and consume minimal sample volume, often less than 100 μL [6].

3.2 SPOT synthesis in peptide arrays

Introduced by Ronald Frank in 1992, SPOT synthesis remains the cornerstone of modern peptide array production. The technique involves the automated delivery of small volumes (typically 0.1 to 1 μL) of activated amino acids onto a functionalized membrane, such as cellulose [7]. Each droplet acts as a discrete micro-reactor, and by repeating the delivery and washing cycles, thousands of peptides can be elongated in parallel.

3.3 Membrane-based vs glass-based peptide arrays

The choice of substrate significantly influences the physical behavior of the peptides and the sensitivity of the resulting assay.
Membrane-based arrays commonly use nitrocellulose or polyvinylidene fluoride (PVDF) membranes as supports. They are often prepared by synthesizing peptides directly on the membrane or by adsorbing pre-synthesized peptides. While these membranes generally allow for easy peptide adsorption, they can be limited in density and may not be compatible with all detection techniques. Additionally, their stability can be compromised by nonspecific protein adsorption, potentially affecting assay accuracy [2].
Glass-based arrays utilize glass as the solid support, which typically provides enhanced control over surface chemistry and can be customized for specific immobilization techniques. They support various detection methods, such as surface plasmon resonance (SPR) and mass spectrometry. Additionally, glass supports offer a more stable environment, which helps minimize nonspecific interactions and improves the overall reliability of assays [2].

3.4 CelluSpots® technology

CelluSpots® technology represents a hybrid approach that effectively marries the high-quality synthesis of the SPOT method with the miniaturization of microarrays. In this process, peptides are synthesized on a specially modified cellulose support that can be dissolved after the chemical assembly is complete. The resulting solutions of individual peptide-cellulose conjugates are then printed onto planar glass slides in a high-density microarray format.

This methodology offers a unique advantage: since the peptides are covalently linked to macromolecular cellulose, they form 3D spots upon evaporation of the solvent on the slide. These 3D spots provide a much higher loading capacity than traditional 2D covalent immobilization, essentially "shifting the binding equilibrium in a favorable direction" to detect low-affinity interactions. Furthermore, CelluSpots® allows for the production of hundreds of identical array copies from a single synthesis batch, ensuring unmatched reproducibility across large screening cohorts. Intavis Peptide Services has utilized this technology for over three decades, supporting thousands of peer-reviewed publications with these high-density, Germany-manufactured arrays.



4. Key Applications of Peptide Arrays

The utility of peptide arrays spans the biomedical research pipeline, from basic molecular biology to the clinical validation of therapeutic antibodies and vaccines. Their most established application is epitope mapping, where overlapping peptide libraries are used to identify the specific regions of an antigen recognized by an antibody. By covering the full sequence of a target protein, researchers can determine the precise linear epitope, meaning a continuous amino-acid segment responsible for binding. This approach is essential for characterizing monoclonal antibodies and for analyzing the complexity of polyclonal immune responses in human serum [8]. Peptide arrays are also widely used in antibody profiling and validation, particularly when antibodies target histone modifications or other post-translational modifications. By comparing antibody binding to modified and unmodified versions of the same peptide sequence, researchers can evaluate selectivity, detect cross-reactivity, and reduce the risk of unreliable results before undertaking more resource-intensive experiments such as ChIP-seq [9].

4.1 Mapping molecular interactions and enzymatic specificity

Beyond antibody-based applications, peptide arrays are valuable tools for identifying molecular interaction sites and enzyme-substrate relationships. In protein-protein interaction studies, they can reveal the minimal binding motifs required for stable complexes, as shown in studies of cancer-related signaling pathways such as the STIL-CHFR interaction, which is involved in cell proliferation. Defining these interaction sites supports the rational design of peptide-based inhibitors capable of disrupting disease-associated protein-protein interactions [10]. High-density peptide arrays also enable systematic screening of ligand libraries against purified receptors or whole cells. For example, they have been used to identify high-affinity binders for SH2, SH3, and PDZ domains, which are important regulatory modules in intracellular signaling. Such applications are highly relevant to drug discovery because they help identify peptides that may function as agonists or antagonists of therapeutic targets [3]. In addition, the positionally addressable format of peptide arrays makes them suitable for profiling enzyme specificity, including kinases, proteases, and methyltransferases. Kinase substrate arrays, for instance, can include hundreds of potential phosphorylation sites, enabling the identification of novel substrates and consensus motifs for poorly characterized kinases, which is particularly important for understanding kinase dysregulation in cancer.

4.2 Applications in immunotherapy and vaccine research

Peptide arrays have become increasingly important in immunotherapy and vaccine research, where rapid and systematic epitope identification is essential. During the COVID-19 pandemic, peptide arrays representing the proteomes of SARS-CoV, SARS-CoV-2, and MERS-CoV were used to characterize cross-reactive antibody populations and identify neutralizing epitopes within the spike glycoprotein [4]. In oncology, peptide arrays support the screening of neoantigens, which are mutated peptides unique to a patient’s tumor. This enables the development of personalized cancer vaccines by helping identify tumor-specific peptide targets capable of activating T-cell responses. In this context, peptide arrays provide a scalable platform for connecting antigen discovery with translational immunotherapy applications.

5. Designing a Peptide Array Experiment

Experimental design is the single most important factor in the success of a peptide array study. A poorly designed library can lead to false negatives or missed epitopes.

5.1 Peptide length and overlap strategy

Peptide length should be selected according to the biological question and the type of epitope being investigated. For linear B-cell epitope mapping, most epitopes consist of 5–9 amino acids. However, to ensure that these motifs are fully represented and accessible to antibodies, peptides of 12–18 residues are generally recommended. In contrast, T-cell epitope studies require consideration of MHC binding preferences: MHC-I-restricted peptides are typically 8–11 amino acids long, whereas MHC-II peptides usually range from 15–24 residues [8].

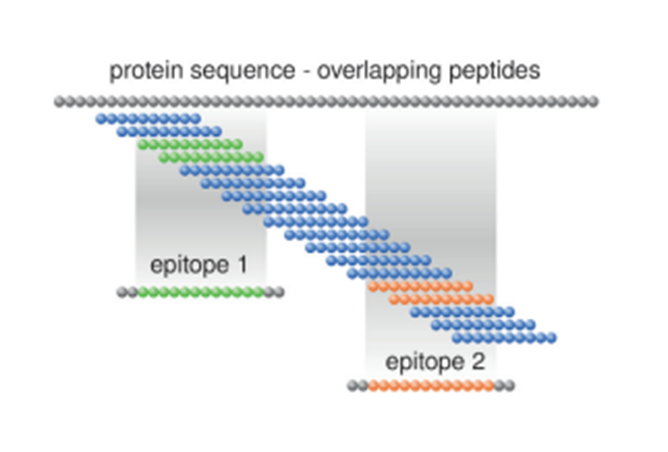

A common approach for scanning a protein sequence is the use of a tiled, or overlapping, peptide library. In this design, the protein sequence is divided into peptides of equal length, such as 15-mers, and each peptide is shifted by a fixed number of amino acids. For high-resolution epitope mapping, a one-amino-acid shift is often used, as this minimizes the risk that a potential epitope will be split between two peptides in a way that prevents recognition [11].



5.2 Array size, density, and experimental controls

The number of peptides required depends on the length of the target protein, the peptide length, and the degree of overlap. Advances in array technology have made it possible to screen increasingly large peptide libraries. For example, modern silicon-based high-density arrays can support more than 10⁶ peptides per assay, enabling large-scale parallel screening. Standard CelluSpots® slides can accommodate up to 768 spots in duplicate, which allows multiple proteins, variants, or experimental conditions to be assessed on a single slide [3].

Reliable interpretation also depends on the inclusion of appropriate controls. Internal duplicates should be used so that each peptide is spotted at least twice, ideally in different positions, to account for local variation across the array [10]. Positive controls, such as known epitopes including Flag (DYKDDDDK) or HA (YPYDVPDYAG), are commonly included to confirm that the detection system is functioning properly. Biotinylated markers can also be used to verify successful spotting [12]. In addition, secondary-only controls, in which a duplicate array is incubated only with the secondary antibody or detection reagent, help identify peptides that bind non-specifically to the reporter molecule [10].

5.4 Controls in peptide array experiments

To ensure data integrity, several types of controls must be integrated into the design:

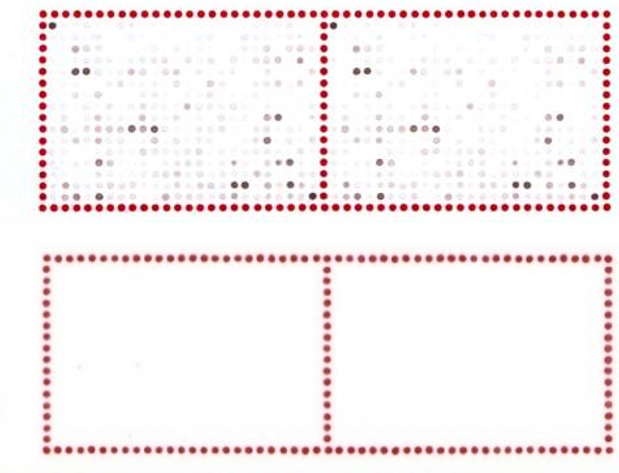

• Internal Duplicates: Every peptide should be spotted at least twice in different locations to account for local hybridization variances.[10]
• Positive Controls: Known epitopes like Flag (DYKDDDDK) or HA (YPYDVPDYAG) are often included to verify detection. Biotinylated markers can confirm successful spotting [12].
• Secondary-Only Controls: A duplicate array incubated only with the secondary antibody/detection agent helps identify peptides that bind non-specifically to the reporter molecule [10].

5.3 Detection methods and readouts

Peptide arrays are compatible with several detection formats, depending on the array surface, assay objective, and required sensitivity. Chemiluminescence, particularly enhanced chemiluminescence (ECL), is well suited to membrane-based arrays and offers high sensitivity in a workflow similar to Western blotting. Fluorescence imaging is commonly used for glass microarrays and enables multiplexing through the use of different fluorescent dyes [2]. Surface plasmon resonance imaging provides a label-free, real-time method for measuring binding kinetics and affinities, including direct estimation of dissociation constants ($K_D$), on the array surface. Autoradiography may also be used in enzymatic assays, such as kinase assays, when radioactive isotopes are required.



6. Advantages of Peptide Arrays Over Traditional Methods

Peptide arrays offer a significant improvement in efficiency, information density, and experimental scalability compared with traditional biochemical methods. In contrast to ELISA, which is robust but inherently serial, peptide arrays allow hundreds or thousands of peptide-antibody interactions to be examined simultaneously on a single platform. Mapping a single protein by ELISA would require many individual wells, larger amounts of purified antigen or peptide, and substantial manual labor. Peptide arrays consolidate this process into one spatially addressable assay, reducing sample consumption while generating quantifiable results from a single incubation. Their high-density format, such as arrays containing up to 768 spots, makes them particularly useful for studies that require broad screening with limited experimental material.

Peptide arrays also offer advantages over phage display, especially in terms of chemical control and sequence flexibility. Although phage display can generate very large libraries, it is influenced by biological propagation biases and is less suitable for incorporating post-translational modifications. Synthetic peptide arrays allow modified and unmodified sequences to be compared side by side, making them especially valuable for identifying fine linear epitopes and analyzing molecular recognition with higher precision. This level of control is important in antibody validation, epitope mapping, and studies involving post-translationally modified targets.

6.1 High-throughput screening, sensitivity, and sample efficiency

A major advantage of peptide arrays is their high-throughput capacity. The ability to screen thousands of interactions in a single experiment enables whole-protein, multi-protein, or even large-scale structure-activity relationship analyses, including alanine scanning, in a much shorter time frame than would be possible with conventional methods. This massively parallel format is particularly relevant for drug discovery, immunology, and biomarker research, where large numbers of candidate binding interactions must be evaluated efficiently.

In addition to their throughput, peptide arrays are well suited for experiments involving limited or precious samples. Modern array formats, particularly those using three-dimensional surface architectures, can improve binding accessibility and enhance sensitivity, allowing the detection of low-affinity interactions that may be missed by traditional surface-bound assays. Their small assay footprint also reduces the amount of sample required, making peptide arrays useful for clinical applications in which only small volumes of serum or patient-derived material are available. Together, their high density, low sample consumption, and improved sensitivity make peptide arrays a powerful alternative to traditional methods for large-scale molecular interaction analysis.

7. Why Platform Choice Matters: CelluSpots® Advantage

Choosing the right peptide array platform is a strategic decision because it directly affects sensitivity, reproducibility, sample consumption, and the overall cost-efficiency of a research program. Traditional peptide array formats offer useful capabilities, but they also have important limitations. SPOT membranes provide flexibility and good peptide accessibility, yet they are relatively large and often require substantial sample volumes. In contrast, simple two-dimensional glass microarrays enable miniaturization, but they may suffer from diffusion-limited kinetics, where low peptide density on the surface makes it difficult to detect low-concentration analytes or weak binding events.

7.1 CelluSpots® as a high-density and sensitive array platform

CelluSpots® arrays address these limitations by combining the accessibility of membrane-based peptide synthesis with the compact, low-volume format of a glass slide. This is achieved through the use of a dissolvable cellulose support, which enables peptides synthesized on cellulose to be transferred and re-spotted onto a miniaturized array surface. As a result, CelluSpots® maintains favorable peptide presentation while supporting high-density array formats suitable for parallel screening.

A defining feature of CelluSpots® is the generation of three-dimensional peptide spots. Compared with conventional two-dimensional deposition methods, these 3D structures can hold substantially more peptide per area, increasing the local concentration of immobilized peptide and improving the detection of weak or low-abundance interactions. This high-density format can shift the binding equilibrium in favor of detectable signal formation, making the platform suitable for high-sensitivity measurements, including interactions with low association rates. The improved peptide loading capacity of 3D spots also contributes to stronger signal intensity and better signal-to-noise ratios, which is particularly important for antibody profiling, epitope mapping, and ligand-receptor screening.





7.2 Custom support, quality assurance, and scientific communication

The value of a peptide array platform depends not only on technical performance but also on the quality of experimental design and scientific support. Successful proteomics research requires careful decisions about peptide length, overlap, sequence variants, controls, and readout strategy. In this context, Intavis Peptide Services provides custom consulting to support clients in sequence optimization, peptide library design, assay planning, and data interpretation.

Germany-based production and comprehensive quality documentation further strengthen the reliability of the platform. By providing peptides with a Certificate of Analysis, Intavis Peptide Services helps researchers assess the quality of the materials used to generate their data. This combination of high-density CelluSpots® technology, 3D peptide presentation, re-spotting capability, custom consulting, and controlled production supports reproducible and interpretable results in peptide array-based research.

8. Conclusion

Peptide array technology has transitioned from a niche chemical synthesis tool into a foundational platform for modern biomedical research. By enabling high-throughput, sensitive, and cost-effective mapping of molecular interactions, these arrays are accelerating the development of next-generation vaccines, therapeutic antibodies, and diagnostic biomarkers.
The strategic implementation of peptide arrays provides an unparalleled view into the functional proteome. As demonstrated by the robust performance of platforms like CelluSpots®, the transition to 3D, high-density architectures is essential for pushing the boundaries of detection sensitivity and throughput. For researchers in pharma and academia alike, the choice of a high-quality CRO, such as Intavis, with its 30-year track record and "Manufactured with Excellence" philosophy, is a critical factor in ensuring that early-stage discovery translates into successful clinical outcomes. In an era of increasing biological complexity, peptide arrays offer the clarity and precision required to turn sequence data into therapeutic reality.



Bibliography

[1] C. Moore; A. Lei; P. Walsh; O. Trenchevska; G. Saini; T. M. Tarasow; M. Srinivasan; D. Smith; M. P. Greving, bioRxiv 2022, 2022.2006.2022.497251.

[2] L. C. Szymczak; H.-Y. Kuo; M. Mrksich, Analytical Chemistry 2018, 90, 266–282.

[3] A. Grab; C. Reißfelder; A. Nesterov-Mueller. Peptide Arrays as Tools for Unraveling Tumor Microenvironments and Drug Discovery in Oncology. In Cells, 2026; Vol. 15, p 146.

[4] Z. P. Cates; A. Facciuolo; E. Scruten; A. Kusalik; S. Napper, PLOS ONE 2025, 20, e0330741.

[5] R. Frank, Journal of Immunological Methods 2002, 267, 13–26.

[6] D. F. H. Winkler; K. Hilpert; O. Brandt; R. E. W. Hancock. Synthesis of Peptide Arrays Using SPOT-Technology and the CelluSpots-Method. In Peptide Microarrays: Methods and Protocols, Cretich, M., Chiari, M. Eds.; Humana Press, 2009; pp 157–174.

[7] R. Volkmer, ChemBioChem 2009, 10, 1431–1442.

[8] L. K. Weber; A. Isse; S. Rentschler; R. E. Kneusel; A. Palermo; J. Hubbuch; A. Nesterov-Mueller; F. Breitling; F. F. Loeffler, Engineering in Life Sciences 2017, 17, 1078–1087.

[9] I. Bock; A. Dhayalan; S. Kudithipudi; O. Brandt; P. Rathert; A. Jeltsch, Epigenetics 2011, 6, 256–263.

[10] H. Amartely; A. Iosub-Amir; A. Friedler, JoVE 2014, e52097.

[11] Y. Xu; S. Wasnik; D. J. Baylink; E. C. Berumen; X. Tang, JoVE 2017, e56401.

[12] G. J. Wegner; H. J. Lee; R. M. Corn, Analytical Chemistry 2002, 74, 5161–5168.
